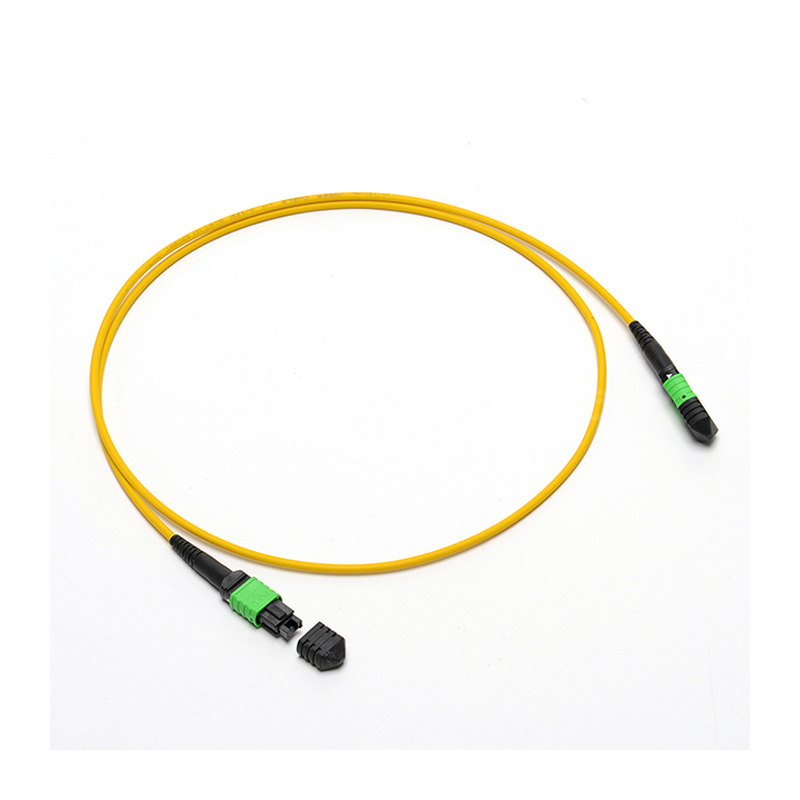

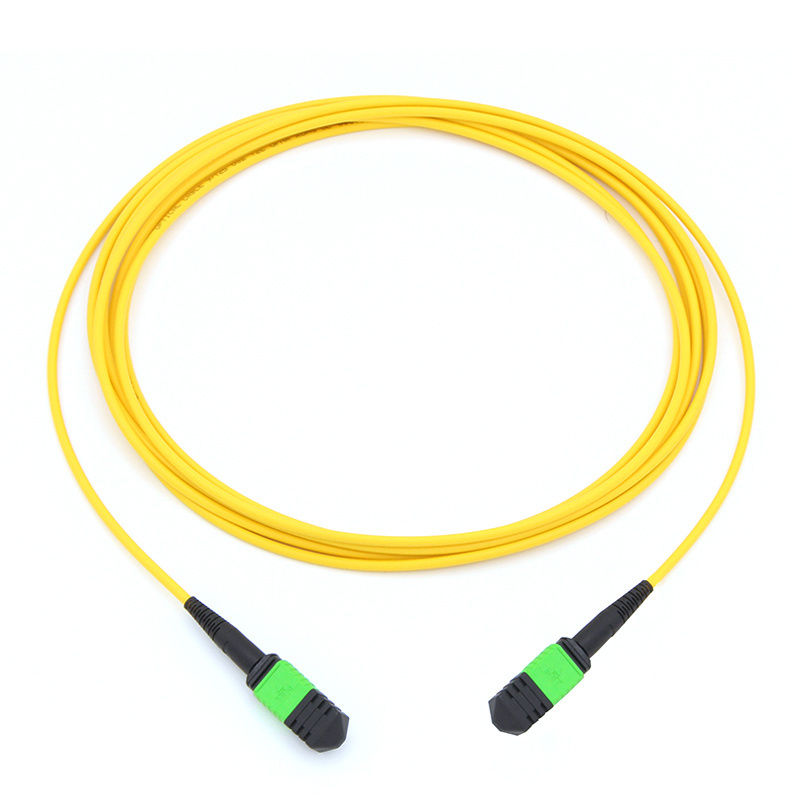

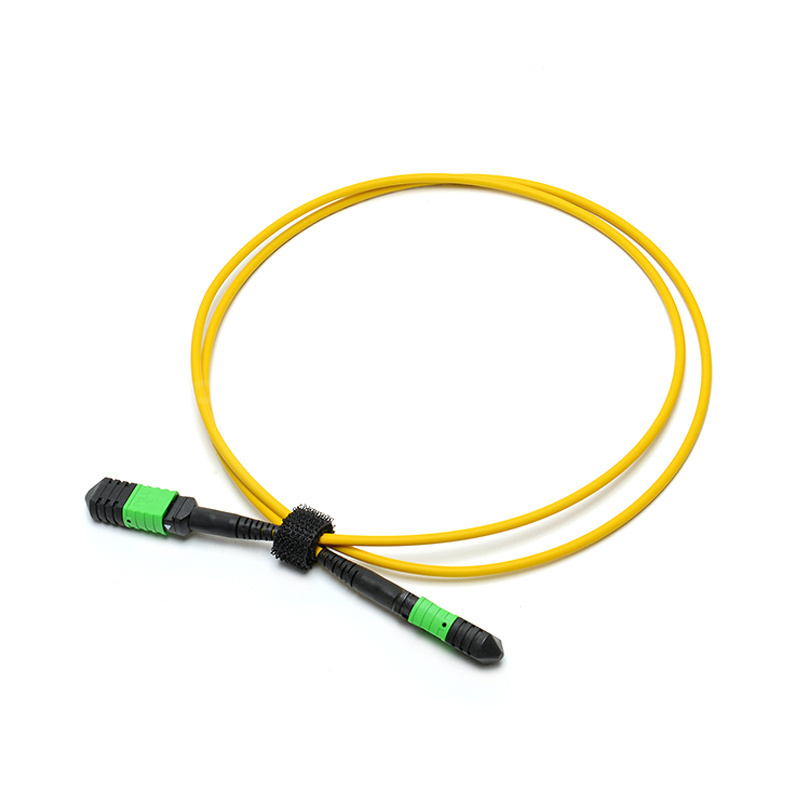

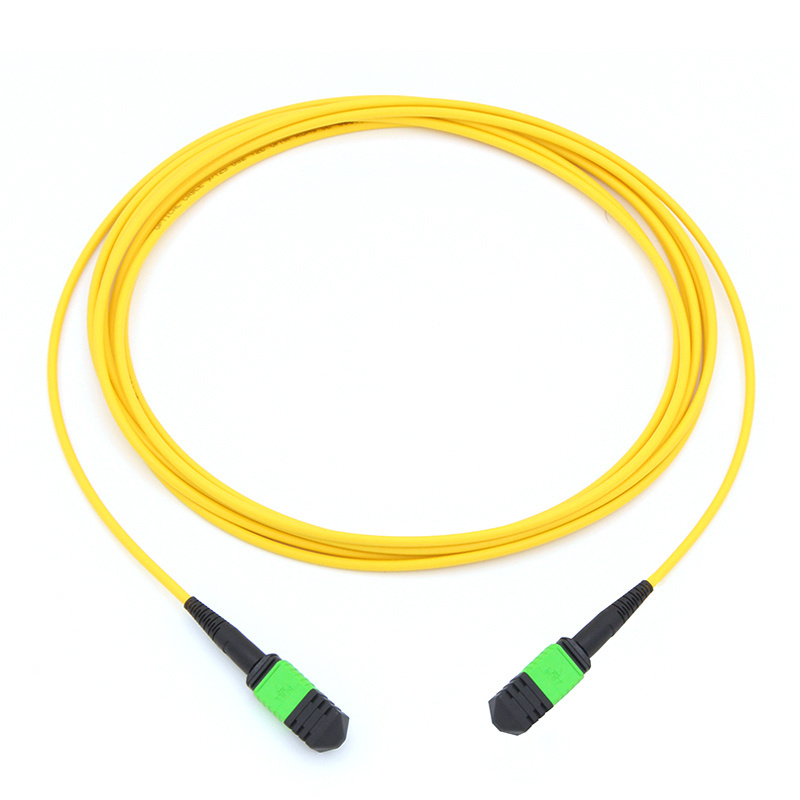

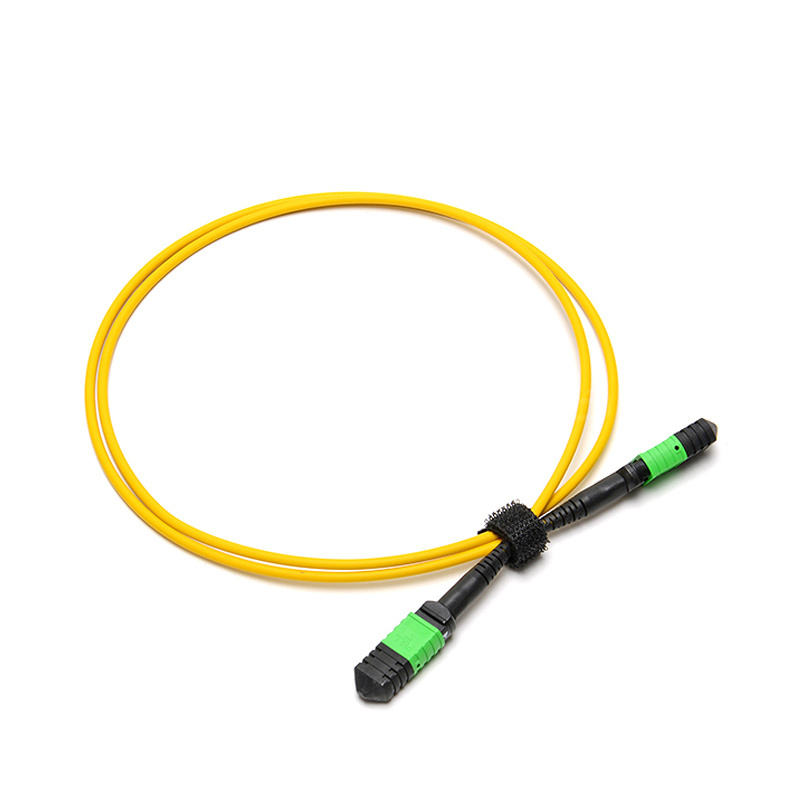

MTP/APC to MTP/APC 1m (3ft) MTP Jumper SM Plenum (OFNP),

제품 설명

Product Description

FiberMania Cable provides a wide range of MTP® breakout cables in both single-mode and multimode configurations, available with 12, 24, 48, or 72 fibers. These assemblies transition a single MTP® connector into multiple SC connectors, offering convenient connectivity for diverse network setups. The fan-out design is offered in male or female versions, with customizable lengths and various fan-out tube diameters to suit specific installation needs.

MTP/MPO cable assemblies—also known as MTP® breakout cables—are well-suited for data distribution and patch panel applications, including plenum environments. Discover our selection of MTP/MPO assemblies engineered for high-density data distribution.

MPO trunk patch cords are designed to interconnect multi-core optical fibers and are compatible with 12F, 24F, 48F, and 72F jumper configurations.

High Bandwidth & Low Loss
Featuring precisely polished fiber end faces, these cables offer insertion loss ≤0.3 dB, ensuring reliable 40G/100G/400G high-speed transmission without latency—ideal for demanding data center environments.

Durable & Stable Performance

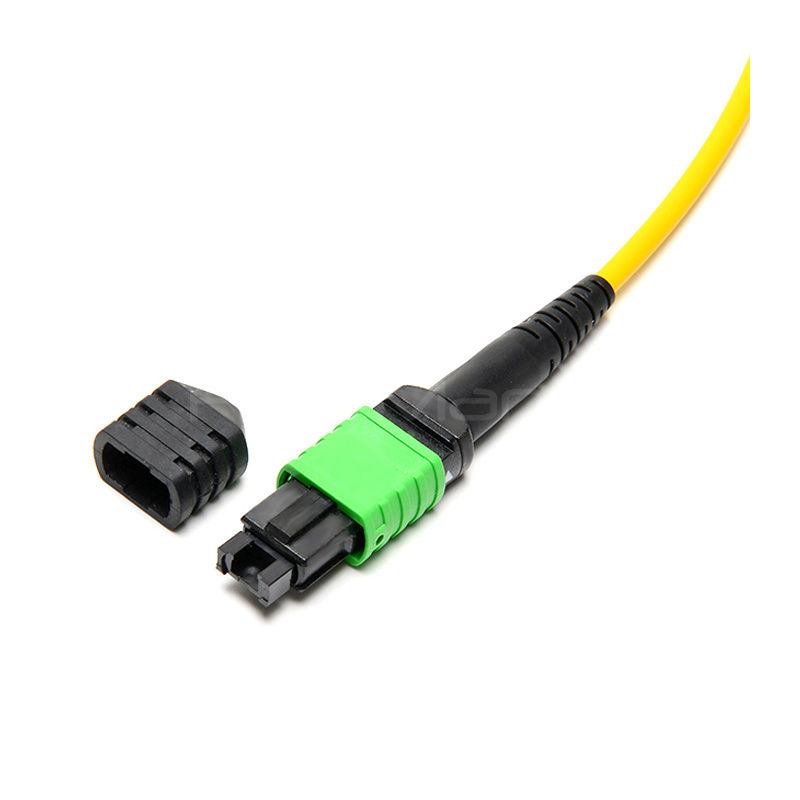

Constructed with high-strength OM3/OM4 fibers and a dust-proof latch design, they resist bending and electromagnetic interference, achieving over 500 mating cycles while maintaining long-term stability.

Plug-and-Play Installation
With a fully pre-terminated structure, the cables eliminate the need for on-site splicing. Deployment is quick, reducing installation time by up to 90% and significantly lowering labor costs.

Flexible Configuration Options
Available in 12-core, 24-core, and 48-core versions, with customizable lengths from 0.5 m to 50 m. Compatible with a wide range of MTP/MPO interfaces to meet diverse application requirements.

Specification

Applications

• Data distribution patch panels

• High-density networking environments

• Plenum-rated installation areas

• Use with MPO/MTP adapter panels

• Active optical network transceiver management

• Optical fiber distribution systems

Our Advantages

• Wide Fiber Compatibility: Offered in both single-mode and multimode versions to meet diverse network needs.

• Multiple Fiber Counts: Available in 12, 24, 48, and 72-fiber configurations for different system scales.

• Efficient Breakout Design: A single 12-fiber MTP® cable can be separated into 12 individual SC connectors, providing expanded connectivity and simplified routing.

• Flexible Fan-Out Options: Choose from male or female styles for greater compatibility with various installation environments.

• Customizable Specifications: Cables can be tailored in length and fan-out tube diameter to ensure optimal fit for each application.

Quality Control and Testing Program

IL and RL Testing
Conduct testing on the insertion loss and return loss of cables to verify their reach and ensure stable signal transmission.

3D Interferometer Testing
Evaluate the connectors or ferrules of cables to verify that the apex offset, radius of curvature, and fiber height are within the specified parameters, ensuring a successful connection of fiber optic lines.

3D Interferometer Testing
Evaluate the connectors or ferrules of cables to verify that the apex offset, radius of curvature, and fiber height are within the specified parameters, ensuring a successful connection of fiber optic lines.

Production Line and Equipment

Certifications

Packing & Shipping
