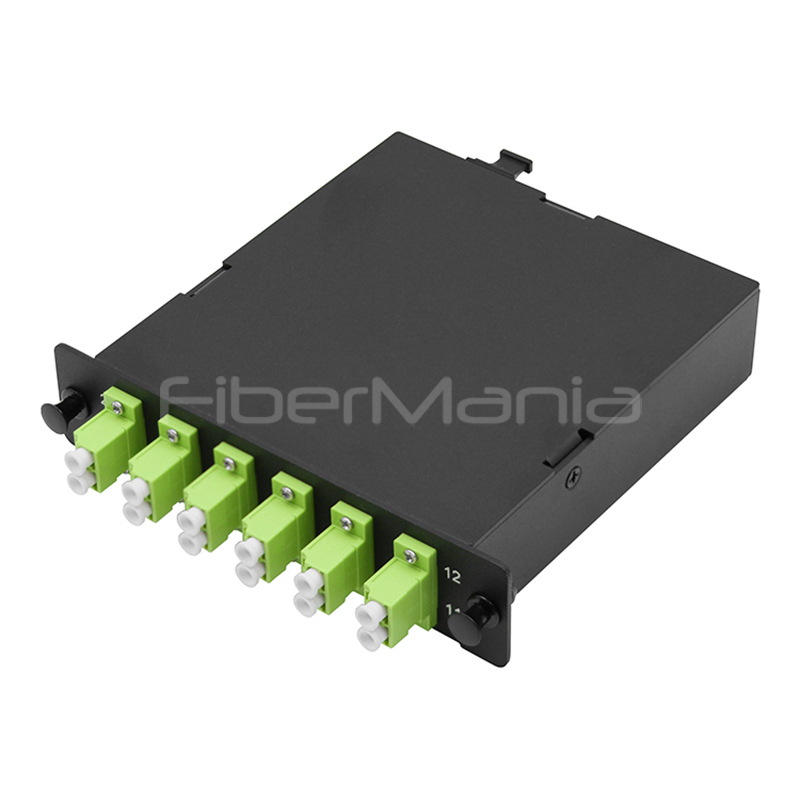

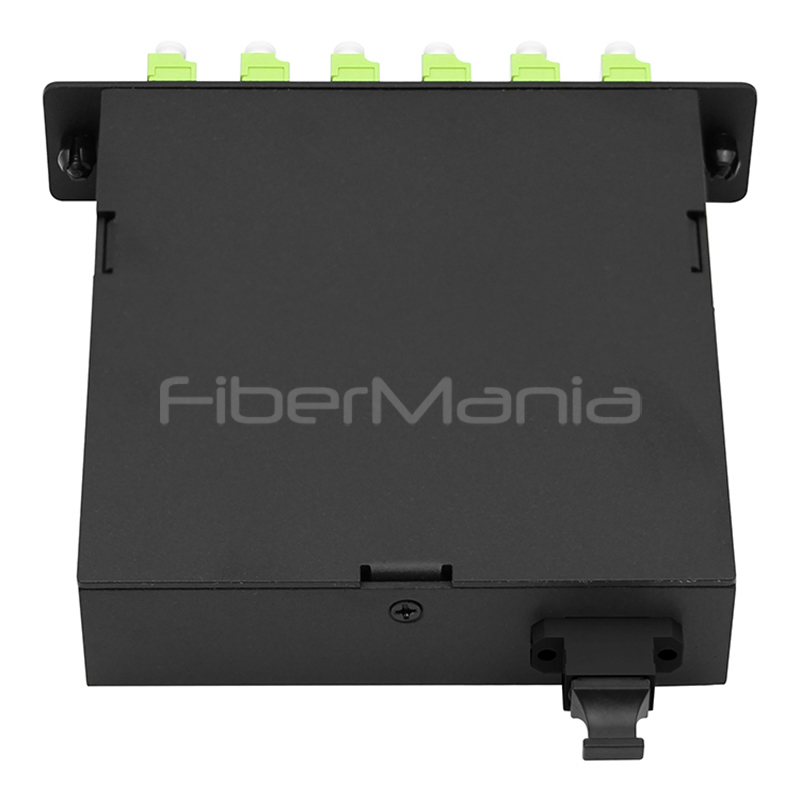

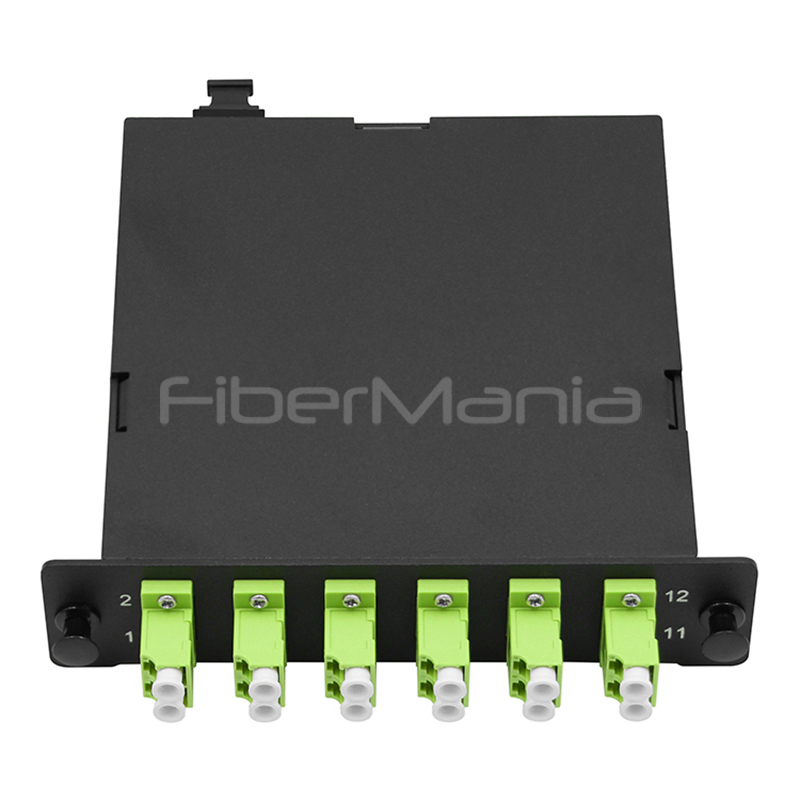

OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette
OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette
지금 연락

OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette

최소 주문 수량 : 10 가격 : 14.5
인증: CE, ISO, RoHS 문서: 제품 설명서 PDF

상세 정보
섬유 수: 12 섬유 섬유 모드: OM5 50/125μm
전면 커넥터: LC UPC 쿼드 후면 커넥터: US Conec MTP® UPC (핀)
LC 포트: 6곳 공항 MTP 포트: 1 포트
MTP 어댑터: 키 업에서 키 다운까지 주택 유형: 카세트
슬리이브재: 지르코니아 세라믹 본체 재질: 알루미늄 (AL5052)
극성: A 형 작동 온도: -25°C~+70°C
보관 온도: -25°C~+70°C 최대 용량: 12포트/24포트(LC)
치수: 129mm x 155mm x 29mm
강조하다:

OM5 12 Cores Fiber Optic Cassette

,

6 Ports MPO-LC Cassette

,

40 and 100Gbps Protocols Fiber Optic Cassette

제품 설명

MTP/MPO-LC Duplex Cassettes OM5 12 Cores Type A 6 Ports Fiber Optic Cassette
MPO/MTP cassette capable of accepting 6-24 fibers. These cassettes are suitable for use with Singlemode, Multimode 62.5 and 50um, as well as Laser Optimized, OM3 applications and are available in LC, SC, ST, FC, MTRJ connector types. MPO/MTP cassette comes pre-installed with the required adapters featuring Zirconia Ceramic sleeves for enhanced compatibility with all applications. Adapters are color-coded according to the application in use (Blue = 9/125; Beige = 62.5 and 50um; Aqua = OM3; Green = APC). All adapters come standard with dust covers.
OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette 0
Key Features
  • High density - can be applied with 12 fibers and 24 fibers
  • Ideal for Data Center Applications
  • MTP/MPO standard compliant multi-fiber connector
  • Available with OS1/2, OM1, OM2, OM3, OM4 fiber grades
  • Available with different fiber adapter ports, SC, LC, ST, FC etc.
  • Rapid deployment terminated modular system saves installation time and labor
Applications
  • LAN, WAN and SAN
  • Data center
  • Telecommunication networks
  • Parallel Optics
  • Emerging 40 and 100Gbps Protocols
Mechanical Characteristics
Operating temperature -25ºC~+70ºC
Storage temperature -25ºC~+70ºC
Relative humidity ≤85%(+30ºC)
Color Black
Max. Capacity 12 port/24 port (LC)
Dimension(WxHxD) 129mm x 155mm x 29mm
Environmental Properties
Performance Level Standard Elite
Connector Cable IL(max) RL(max) IL(max) RL(max)
≤0.70dB ≥20dB ≤0.35dB ≥20dB
LC/SC/FC/ST ≤0.20dB ≥30dB ≤0.10dB ≥30dB
Quality Testing Program
OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette 1
IL and RL Testing
Conduct testing on the insertion loss and return loss of cables to verify their reach and ensure stable signal transmission.
3D Interferometer Testing
Evaluate the connectors or ferrules of cables to verify that the apex offset, radius of curvature, and fiber height are within the specified parameters, ensuring a successful connection of fiber optic lines.
OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette 2 OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette 3
End-Face Inspection
Examine the connector end face for any scratches, defects, or contamination to ensure the tips remain clean. This practice enhances communication quality and reliability, thereby contributing to network uptime.
Production Equipment
OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette 4 OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette 5 OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette 6 OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette 7 OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette 8 OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette 9
Packaging & Shipping
OM5 12 Cores 6 Ports Fiber Optic Cassette for 40 and 100Gbps Protocols MPO-LC Cassette 10
Frequently Asked Questions
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may consider stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.
