| 최소 주문 수량 : | 5 | 가격 : | 35 |
|---|
| 인증: | ISO, RoHS | 문서: | 제품 설명서 PDF |
|---|
|
상세 정보 |
|||
| 섬유 수: | 최대. 120 섬유 | 재료: | 1.2mm SPCC(블랙 코팅) |
|---|---|---|---|
| 섬유 모드: | OM3 50/125μm | 전면 어댑터: | LC 이중 |
| 후면 어댑터: | MTP-12 남성(고정) | 삽입 손실: | MTP<0.75dB, LC<0.2dB |
| 반환 손실: | MTP≥60dB, LC≥50dB | 치수: | 44.5x432x356mm |
| 작동 온도: | -25°C~+70°C | 보관 온도: | -25°C~+70°C |
| 상대습도: | ≤85%(+30°C) | 기압: | 70Kpa~106Kpa |
| 색상: | 검은색 | 운송 패키지: | 내부 상자를 카톤으로 |
| 생산능력: | 달 당 10,000 조각 | ||
| 강조하다: | 4xMTP/MPO to LC Duplex Fiber Patch Panel,120 Fibers Fiber Patch Panel,1.2mm SPCC MPO-LC Cassette |
||
제품 설명

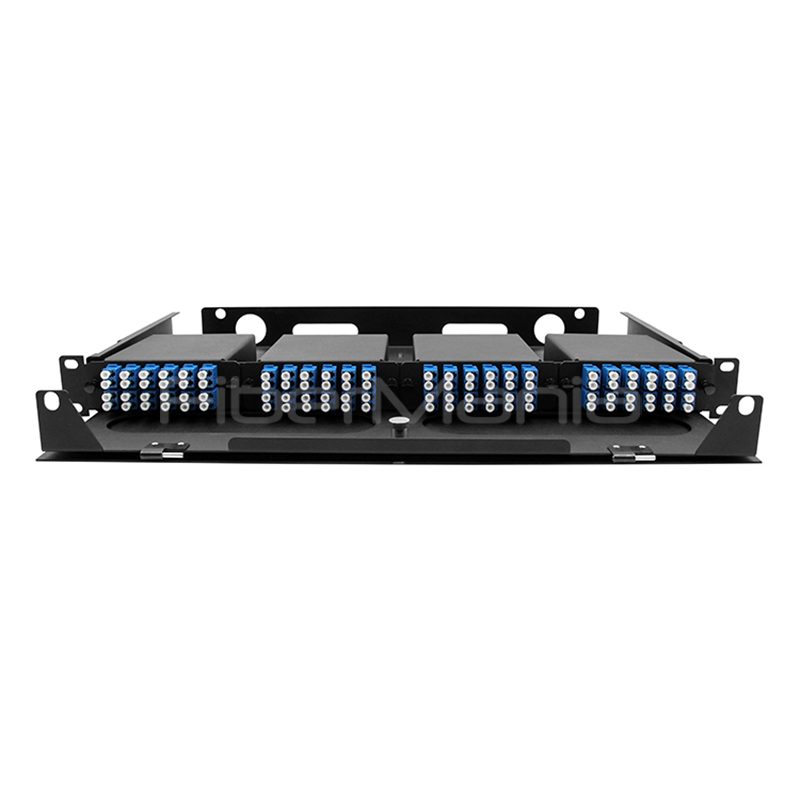

The Rack Mount 4xMTP/MPO to LC Duplex Cassettes Fiber Patch Panel aligns with modern high-density, high-capacity network requirements. This distribution box converts multi-channel MPO interface signals to LC type interfaces through a modular encapsulation structure. Designed for integration with wiring boxes, it features a compact, high-density design for convenient operation in 19-inch standard distribution boxes, network cabinets, and open frames.

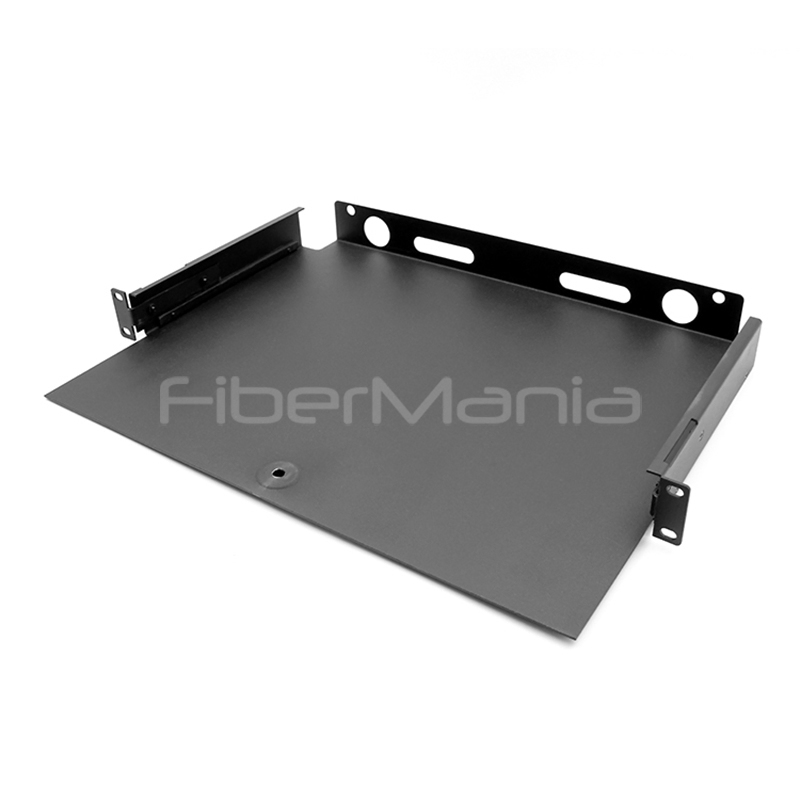

Constructed from high-quality cold-rolled sheet material with electrostatic spray treatment, the panel offers a uniform, bubble-free finish with no impurities.
| Parameter | Value |
|---|---|
| Operating temperature | -25ºC to +70ºC |
| Storage temperature | -25ºC to +70ºC |
| Relative humidity | ≤85% at +30ºC |
| Air pressure | 70Kpa to 106Kpa |
| Color | Black |
IL and RL Testing: Conducts insertion loss and return loss testing on cables to verify reach and ensure stable signal transmission.
3D Interferometer Testing: Evaluates connectors/ferrules to verify apex offset, radius of curvature, and fiber height meet specifications for successful fiber optic connections.
End-Face Inspection: Examines connector end faces for scratches, defects, or contamination to maintain clean tips, enhancing communication quality and network reliability.
